Building some speakers

User avatar
Diapason
Posts: 4121
Joined: Mon Jan 18, 2010 11:51 am

Re: Building some speakers

Post by Diapason »

It's not really the point, but I would be intrigued to know in what way these differ to the Kontrasts, and what similarities they might have (in sonic terms). Loudspeaker design always seems like a black art to me, but that's partly because I know nothing about it. At some point I'd love to get a handle on what really makes the difference: shape, materials, drivers, crossovers. Obviously it's all of them, but at what levels?
Nerdcave: ...is no more! :(
Sitting Room: Wadia 581SE - Rega Planar 3/AT VM95ML & SH - Bluesound Node II - Copland CSA 100 - Audioplan Kontrast 3
Kitchen: WiiM Pro - Wadia 151 - B&W 685s2
User avatar
Ken Moreland
Posts: 814
Joined: Sun Jan 17, 2010 7:47 pm

Re: Building some speakers

Post by Ken Moreland »

Great job , well done . I love the crossovers , maybe it's worth comparing separating them from the speaker body . Enjoy.
i5 QuietPC , JplayFemto , Singxer SU-6 , Holo Audio Spring DAC ,LAB12 Preamp, Roundtree Mono Amps, Rosso Fiorentino Elba 2 Speakers
.
User avatar
Fran
Site Admin
Posts: 4135
Joined: Sat Jan 16, 2010 10:03 pm

Re: Building some speakers

Post by Fran »

james wrote: Fri Jun 19, 2020 12:18 am Great stuff .. Since the crossover is removable have you considered going active?
To be honest - no I haven't. There's a lt of love out there for line level crossovers and then separate amping for sure. Maybe something to experiment with in the future for sure.
but I would be intrigued to know in what way these differ to the Kontrasts, and what similarities they might have (in sonic terms).
Me too!! They should have some similarities and some differences (I know, that covers everything!). The box is similar but different, the mid/woofer is the same, but the tweeter is substantially different. The crossover is completely my own so no similarity there at all. Some day!

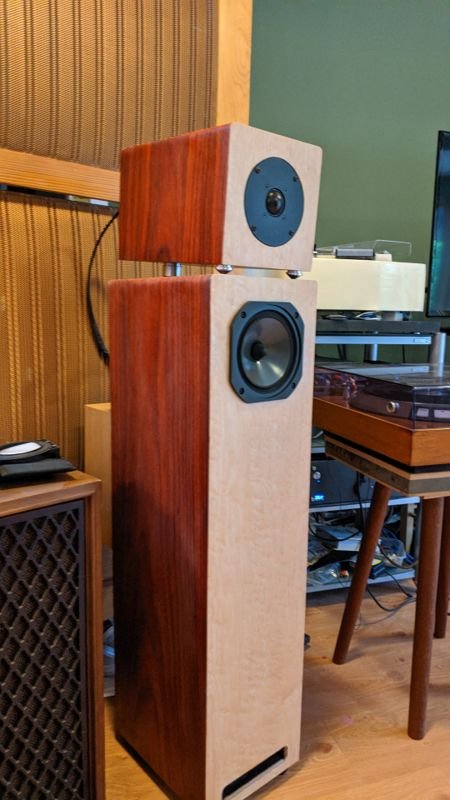

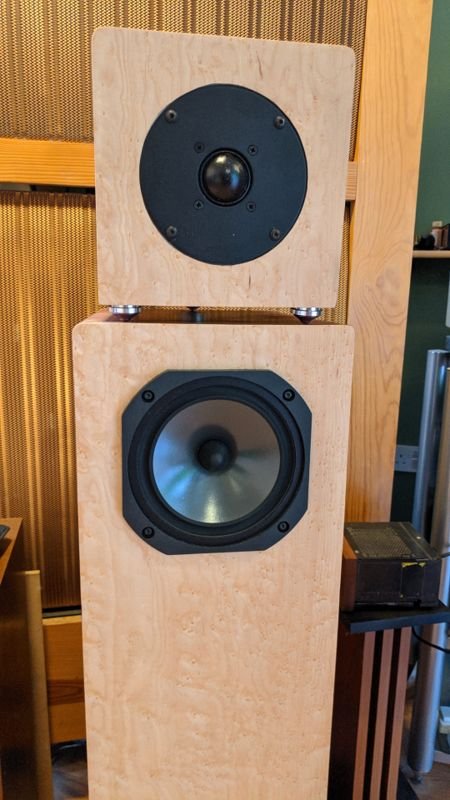

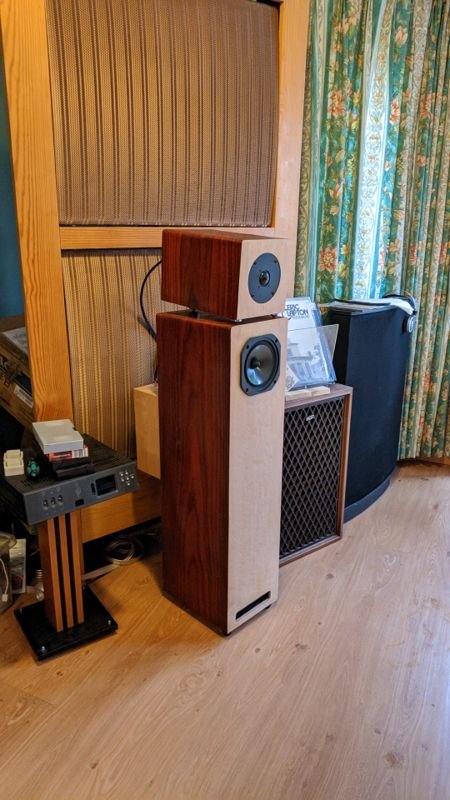

Can you post a pic of the fronts with drivers in place?
Ask and ye shall receive!!
Do or do not, there is no try
User avatar
markof
Posts: 1040
Joined: Thu Jul 05, 2012 10:54 am
Location: An Cobh

Re: Building some speakers

Post by markof »

Wow.
Congratulations.
Mark.
Main: Qobuz/Arcam Alpha 9 CD/Project Carbon Esprit->Auralic Polaris->Chord Silver Carnival->Martin Logan EM-ESL
Office: Qobuz->Auralic Aries Mini->Denafrips ARES II->miniDSP 2X4 HD>Primare I32->Harbeth P3ESR/REL T5X
tony
Posts: 3144
Joined: Mon Jan 18, 2010 2:36 pm

Re: Building some speakers

Post by tony »

watsapp photos I saw looked really nice but the ones posted today here are fabulous. Maybe you have added a few coats of polish? They look incredible Fran.
GroupBuySD DAC/First Watt AlephJ/NigeAmp/Audio PC's/Lampi L4.5 Dac/ Groupbuy AD1862 DHT Dac /Quad ESL63's.Tannoy Legacy Cheviots.
User avatar
ho66es
Posts: 44
Joined: Thu Jun 26, 2014 7:19 pm

Re: Building some speakers

Post by ho66es »

great thread, beautiful looking speakers, look forward to a listen .
User avatar
Fran
Site Admin
Posts: 4135
Joined: Sat Jan 16, 2010 10:03 pm

Re: Building some speakers

Post by Fran »

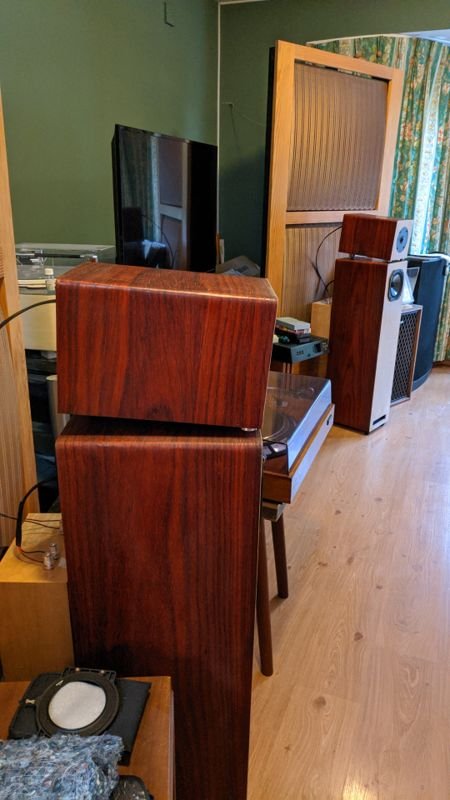

Actually in those pics I had just keyed the surface as I need to give them another couple of coats of oil to bring up the lustre a bit more. So, its probably a bit dull in the pics. I'm not looking for a high gloss at all, more a satin with good depth to the finish.
Do or do not, there is no try
Terry
Posts: 234
Joined: Thu May 22, 2014 10:10 pm

Re: Building some speakers

Post by Terry »

They look stunning Fran. Superb job.

Terry
System 1. LP12/Mose Hercules/Ittok LVII/ATOC9III, Dynavector P75 MkIII, Denon DCD-A100, iPad/AirPlay, Accuphase e303x, Gale gs401a.
System2. iMac/Tidal, iFI Dac, Dynavector L200 pre, Croft Iosis, Sonus Faber Auditor M.
User avatar
DaveF
Posts: 2869
Joined: Sun Jan 17, 2010 10:38 pm

Re: Building some speakers

Post by DaveF »

Great work Fran. Going by the pictures I think they look better than the Audioplan Kontrasts. I really like the way you can position the tweeter angle. I suspect there will be a long queue outside your gaff to hear these.
"I may skip. I may even warp a little.... But I will never, ever crash. I am your friend for life. " -Vinyl.
Michell Gyrodec SE, Hana ML cart, Parasound JC3 Jr, Stax LR-700, Stax SRM-006ts Energiser, Quad Artera Play+ CDP
User avatar
Fran
Site Admin
Posts: 4135
Joined: Sat Jan 16, 2010 10:03 pm

Re: Building some speakers

Post by Fran »

Thanks all for the kind comments. Once these restrictions lift there's no bother with anyone coming along that wants a listen!



I said earlier that I would talk about the costs. The truth is that DIY isn't cheap, but its a matter of value.

So what did I spend?

MDF and cutting the panels to size - €110
Speaker drivers, damping material, inductors, resistors, capacitors etc €396
Veneer €162
Fancy crossover components €206

Total €874

That doesn't include my time (of course), and some incidentals like screws, filler, nails, glue, sandpaper etc. You could easily have another €100 or more there if you had to go out and buy them.

So of those listed costs, really the fancy crossover components are a luxury item, and you could certainly paint the cabinets for a lot less money. A textured rattle can finish wouldn't look terrible and would probably cost closer to €40 or €50. That would bring the price back down by maybe €250. Also, I bought inductors etc with the speaker drivers from France, so in essence I paid for the crossover components and then paid again for fancier ones. The original ones BTW are not bad - they were mundorf air cored inductors so no slouches themselves.
I justify the spend to myself in saying that the extra few bob will mean nothing in 2 or 5 years time, and of course I felt I knew from listening to them that it was worth it sonically.

So there you go, I've told the story from one end to the other. I still have plenty to do with these - I need to experiment with different amps, and positioning, toe in, rooms and so on. I have a little cosmetic touch to do on the front facing port too which I hope to get to this week.

Now its on to listening and enjoying.....
