Sligolad and nige2000,
I took the picture after finishing the assembly and, fortunately, when connecting to the PSU, I noticed the cap terminals were inverted. I was so carried way with the improvement that I forgot the picture was misleading. I edited the post with a warning.
MoBo Memory Power Bypass
-
adolfo.a.aguiar
- Posts: 97
- Joined: Fri Oct 11, 2013 4:22 pm
Re: MoBo Memory Power Bypass
SDTrans384 with 1X5V and 3x3.3V supplied by A123 batteries, Soekris DAM1021 Rev2 with +-12V and 3.3V supplied by A123 batteries, Salas hotrodded DCB1, LM3875 Gainclone and IPL Acoustics S2TLM transmission line speakers
Re: MoBo Memory Power Bypass
No harm done Adolfo...only lots of amazing sounds, a very welcome improvement here.
I have had 2 of those Caps sitting on a shelf since March and finally got one installed after your prompt so many thanks to both yourself and Nige.
Tempted to install the second one in the Control PC with another Audiowind but would not expect the improvement I am hearing from the Audio PC. Still the fact that it works so well I think I will install it in the Control PC at some point.
Been enjoying some great music for the past few hours :-))
Cheers, Pearse.
I have had 2 of those Caps sitting on a shelf since March and finally got one installed after your prompt so many thanks to both yourself and Nige.
Tempted to install the second one in the Control PC with another Audiowind but would not expect the improvement I am hearing from the Audio PC. Still the fact that it works so well I think I will install it in the Control PC at some point.
Been enjoying some great music for the past few hours :-))
Cheers, Pearse.
___________________________________________
SD Card DAC, Gryphon Essence Mono's & Pre Amp, Wilson Alexia 2 Speakers,VPI Scout 2 & Supatrac arm, Studer A812 R2R.
SD Card DAC, Gryphon Essence Mono's & Pre Amp, Wilson Alexia 2 Speakers,VPI Scout 2 & Supatrac arm, Studer A812 R2R.
Re: MoBo Memory Power Bypass
Delighted for ye
I try not to steer ye wrong ;)
I try not to steer ye wrong ;)
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: MoBo Memory Power Bypass
I'm using the ATX Teradak PS and can I use this supercaps for my SSD's and for my USB card.......CPU maybe?
I5 4440+TXCOmobo+JCAT Femto-Intona-JKRegen+HynesPS+TeraDak ATX-820W=JCATusb=DiverterHR=Wadia 931/922(GNSC mod)=PassLabsXA100.5=2xValhalla=Stacked&moded ESL57+JAS SuperTweet+2MJ Acoustics Ref.I
4SteinHarmonizers;RR777;Tellus;StillpointsUltraSS
4SteinHarmonizers;RR777;Tellus;StillpointsUltraSS
Re: MoBo Memory Power Bypass
dont think so....sima66 wrote:I'm using the ATX Teradak PS and can I use this supercaps for my SSD's and for my USB card.......CPU maybe?
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: MoBo Memory Power Bypass
I finally hoped that I found a solution and you just throw icy water on me! :-)nige2000 wrote:dont think so....sima66 wrote:I'm using the ATX Teradak PS and can I use this supercaps for my SSD's and for my USB card.......CPU maybe?
Any other idea maybe, since no luck with the batteries?
I5 4440+TXCOmobo+JCAT Femto-Intona-JKRegen+HynesPS+TeraDak ATX-820W=JCATusb=DiverterHR=Wadia 931/922(GNSC mod)=PassLabsXA100.5=2xValhalla=Stacked&moded ESL57+JAS SuperTweet+2MJ Acoustics Ref.I
4SteinHarmonizers;RR777;Tellus;StillpointsUltraSS
4SteinHarmonizers;RR777;Tellus;StillpointsUltraSS
Re: MoBo Memory Power Bypass

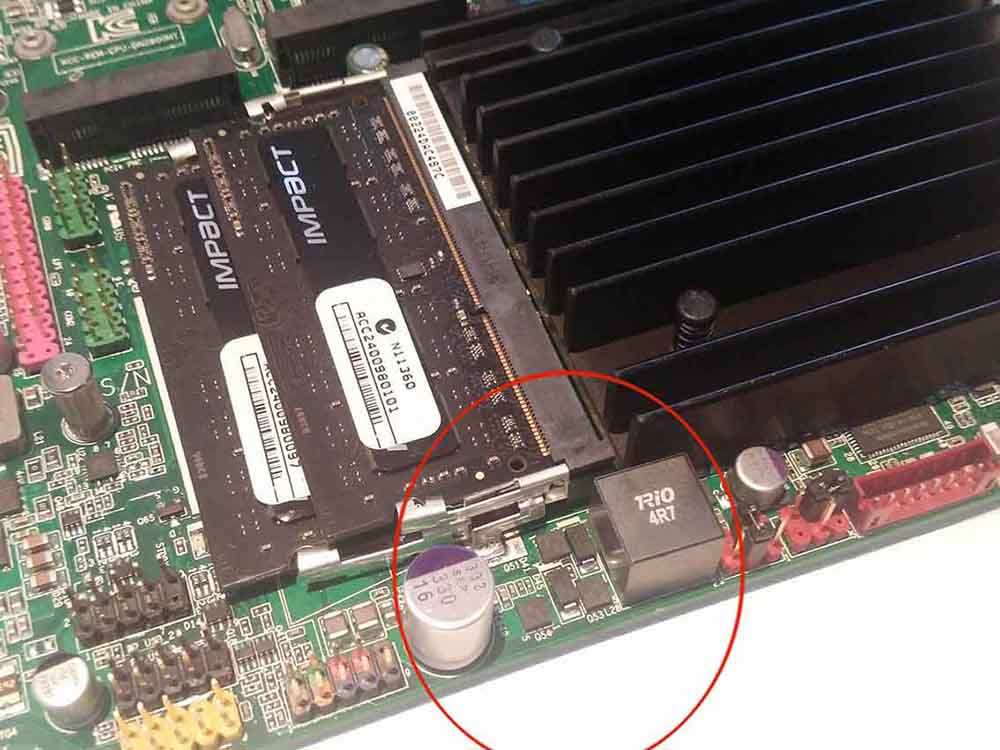

I own an Intel Atom based board (Intel DM2800MT)and would like to supply power directly to memory as discussed in this thread. My problem is that I can't find the correct point on the motherboard to connect to the ram. As described already by Pearce, 'find the choke closest to the ram modules check the voltage, should be 1.5 volts'. In the image below I have circled the choke closest to the ram modules and it reads 10.15 volts. As I am a novice could be ready this value in correctly. If I am reading the voltage correctly, does anyone know how to find the correct point on the motherboard without the obvious choke connect? Would appreciate any advice.
- photo 2.jpg (88.17 KiB) Viewed 2083 times
Re: MoBo Memory Power Bypass
on the left there there is a choke and cap (circled) check that voltage there if thats not it try the other cap ive circled
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: MoBo Memory Power Bypass
Thanks Nige 2000 for your reply. Unlike the choke photographed in this thread the one circled has no connection points to read from. However both caps that you circled do have 1.5 volts readings. The question then is which one would be the correction one and do I replace that capacitor with the super cap? As it may be assumed from my line of questioning I am a real novice when it comes to understanding electronic circuits. So I am apologetic for the elementary questioning.
Re: MoBo Memory Power Bypass
Had a closer look at the encircled choke and did notice connection points on the top side of the motherboard, not the bottom. It measures 1.5 volts. If I had to take a an uneducated guess I would say this is the right memory power bypass point. Hmmmm!
