It didn't explode....... YET (aka niges amp)
Re: It didn't explode....... YET (aka niges amp)
Great progress again with todays build day
congrats to all envolved
don't think anyone got any photos
if we have another good day next sat we should be pretty much done
congrats to all envolved
don't think anyone got any photos
if we have another good day next sat we should be pretty much done
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: It didn't explode....... YET (aka niges amp)
congrats to all today
were so nearly finished
can someone remind me were the amps are
fran has two that needs light troubleshooting
ive two that need some troubleshooting and the prototype that needs front and rear panels fitted?
whos got the others?
if anyone got one without voltmeters please keep an eye on the voltages
were so nearly finished
can someone remind me were the amps are
fran has two that needs light troubleshooting
ive two that need some troubleshooting and the prototype that needs front and rear panels fitted?
whos got the others?
if anyone got one without voltmeters please keep an eye on the voltages
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: It didn't explode....... YET (aka niges amp)
Fran has the first full build as well Nige so 3 in all and Tony took the other one I think.
___________________________________________
SD Card DAC, Gryphon Essence Mono's & Pre Amp, Wilson Alexia 2 Speakers,VPI Scout 2 & Supatrac arm, Studer A812 R2R.
SD Card DAC, Gryphon Essence Mono's & Pre Amp, Wilson Alexia 2 Speakers,VPI Scout 2 & Supatrac arm, Studer A812 R2R.
Re: It didn't explode....... YET (aka niges amp)
I have the first full build, enjoying the music. Fran has the other two to trouble shoot. So 3 in all came with us.
NigeAmp, NigeSD DAC, Airtight ATM-4, Ruark Accolades, Pink Triangle TT, Roksan Artimiz, Clearaudio Discovery, Tom Evans Microgroove Plus, Fran DAC, Dalkey Audio Interconnects.
Re: It didn't explode....... YET (aka niges amp)
thats fine thats them all accounted for
head was fried last sat evening
head was fried last sat evening
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: It didn't explode....... YET (aka niges amp)
it was a long and busy day!!
I have one more of the two I brought home with me fixed up, been running now about 3 hours and all seems well. I'll tackle the other one shortly but I think I know whats wrong with it. On reflection this bit of troubleshooting is completely normal and to be expected. Its been this way on every amp I've ever built.....
Fran
I have one more of the two I brought home with me fixed up, been running now about 3 hours and all seems well. I'll tackle the other one shortly but I think I know whats wrong with it. On reflection this bit of troubleshooting is completely normal and to be expected. Its been this way on every amp I've ever built.....
Fran
Do or do not, there is no try
Re: It didn't explode....... YET (aka niges amp)
Ok my two here's working now,
On the faulty psu one rewired the amp chips with twisted pairs but that didn't solve the hum buzz and dc voltage
Bridged amp psu gnd and signal gnd and solved the issue
Must have been some sort of oscillation between signal and power gnd
Replaced rectifier on psu board which was a right pain in the hole
turned out the ac trace was shorted
On the faulty psu one rewired the amp chips with twisted pairs but that didn't solve the hum buzz and dc voltage
Bridged amp psu gnd and signal gnd and solved the issue
Must have been some sort of oscillation between signal and power gnd
Replaced rectifier on psu board which was a right pain in the hole
turned out the ac trace was shorted
Last edited by nige2000 on Tue Feb 13, 2018 10:21 pm, edited 2 times in total.
sd card player, modded soekris dac, class a lifepo4 amp or gb class a/b amp, diy open baffle speakers based on project audio mundorf trio 10's
Re: It didn't explode....... YET (aka niges amp)
Well done Lads
NigeAmp, NigeSD DAC, Airtight ATM-4, Ruark Accolades, Pink Triangle TT, Roksan Artimiz, Clearaudio Discovery, Tom Evans Microgroove Plus, Fran DAC, Dalkey Audio Interconnects.
Re: It didn't explode....... YET (aka niges amp)

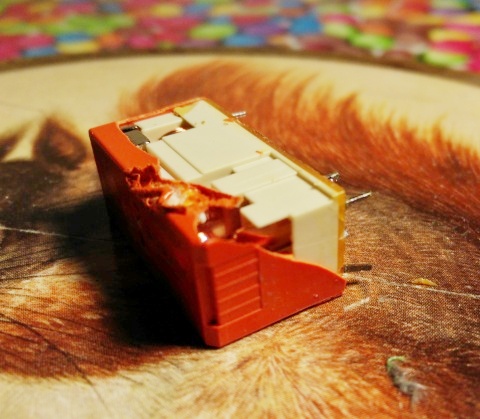

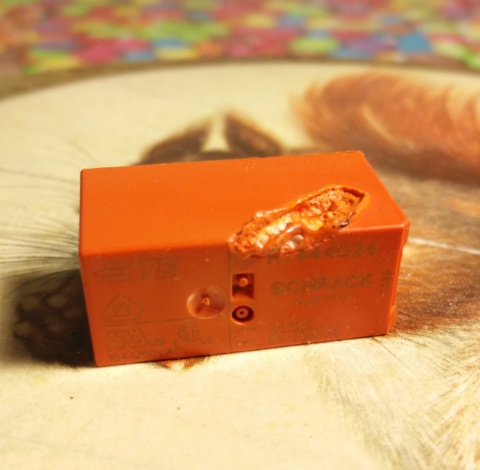

And I have the 3 thats here with me sorted out now. One was due to a damaged relay - it got a bit of a touch of the soldering iron, that melted the case, melted plastic was touching the contacts and stopping them closing. Even though the solenoid in the relay was clicking, the switch contacts weren't making it. You live and learn.
That means 6 working now, last few bits are now needed to finish them off. I'll give these ones here a good soak test, the one in Derek's already has this and I think Nigel's ones will get the same.
Its looking good folks!
That means 6 working now, last few bits are now needed to finish them off. I'll give these ones here a good soak test, the one in Derek's already has this and I think Nigel's ones will get the same.
Its looking good folks!
- Attachments
-
- 114201822105-01.jpeg (74.13 KiB) Viewed 541 times
-
- 114201822932.jpg (55.9 KiB) Viewed 541 times
