Okay, the reclock wiring is still confusing the $#!+ out of me. No pictures I can find with detailed wiring exposed.
Took me some googling just to figure out the potato flip flop is dual split left/right side. What I need to know is what outputs on the diyinhk board correspond to the pins of the flip flop. So far all I have with any detail is this post from hifiduino:
I connect pin 1,4,14 to Vcc, pin 7 to GND, pin 2 to BCLK and pin 3 to oscillator. Are my wiring correct? I can’t get any output from the flip-flop!!
The connections are correct.

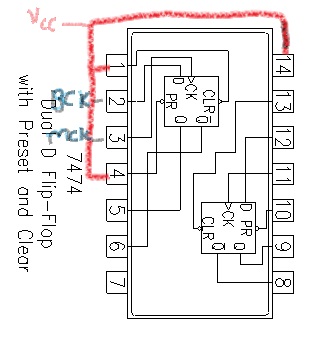

So I'm guessing it goes something like the attached?
Are the outputs 1Q and 1Qbar (5 and 6)? Do those go to the master clock? Am I using Bclk AND master clock inputs from the diyinhk?
wushuliu wrote:Okay, the reclock wiring is still confusing the $#!+ out of me. No pictures I can find with detailed wiring exposed.
Took me some googling just to figure out the potato flip flop is dual split left/right side. What I need to know is what outputs on the diyinhk board correspond to the pins of the flip flop. So far all I have with any detail is this post from hifiduino:
I connect pin 1,4,14 to Vcc, pin 7 to GND, pin 2 to BCLK and pin 3 to oscillator. Are my wiring correct? I can’t get any output from the flip-flop!!
The connections are correct.
So I'm guessing it goes something like the attached?
Are the outputs 1Q and 1Qbar (5 and 6)? Do those go to the master clock? Am I using Bclk AND master clock inputs from the diyinhk?
well unless your going to use the boutique potato logic 74 chips there may be little to no benefit of using this particular type of 74 logic not to mention you need two chips as each chip only has two channels
the pinout of a single 574 logic chip is far easier to implement http://www.mouser.ie/Semiconductors/Log ... 74&FS=True
